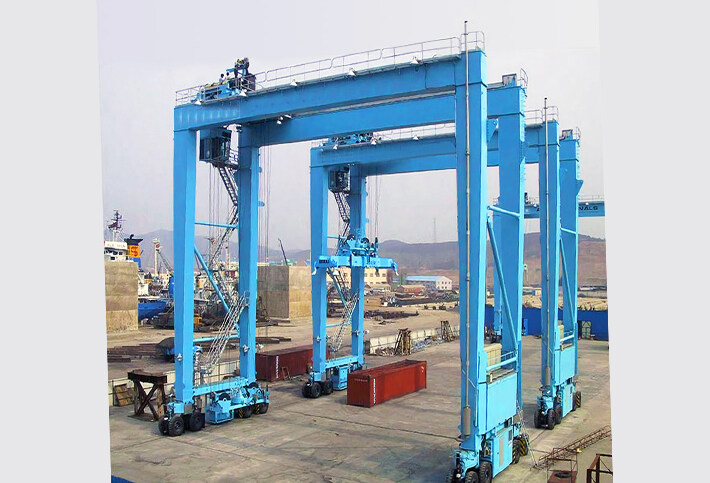

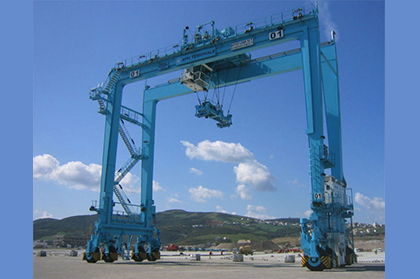

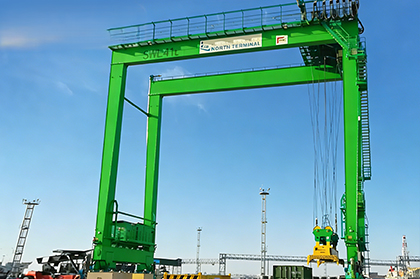

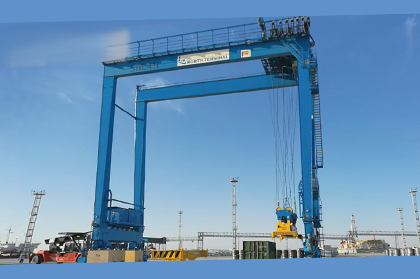

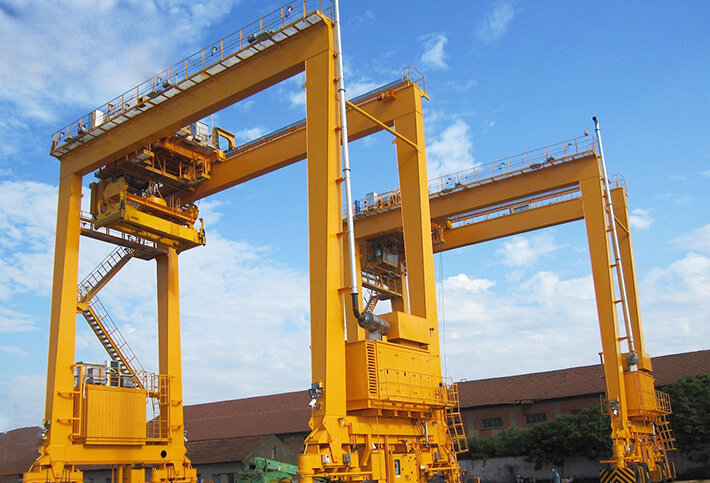

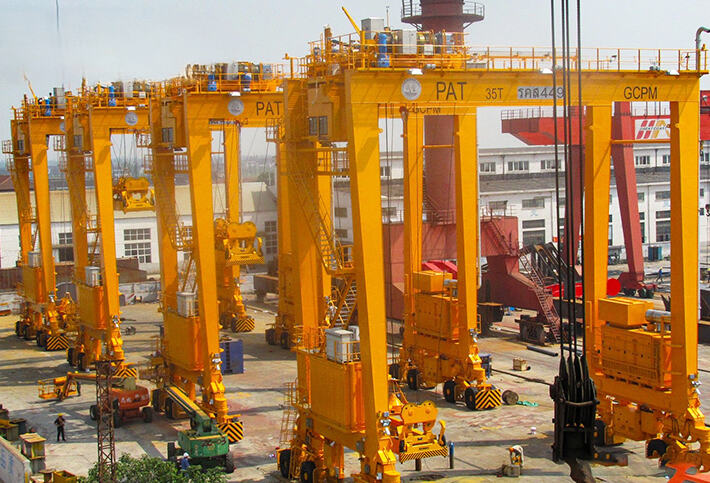

The rubber-tyred container gantry crane (RTG) is a key machine in container terminals, used for loading, unloading, stacking, and transferring containers within the container yard. Rated capacity (under spreader) 20t. Span 20m.
The RTG runs on rubber tyres, allowing free movement within the container yard without the need for fixed rails. Power is supplied by a diesel generator set or a mains-electric connection. The automatic telescopic spreader adapts to 20 ft and 40 ft containers. Hoisting and trolley travel are controlled by variable-frequency drives for precise positioning. An anti-sway system minimises spreader oscillation, increasing handling speed and safety.

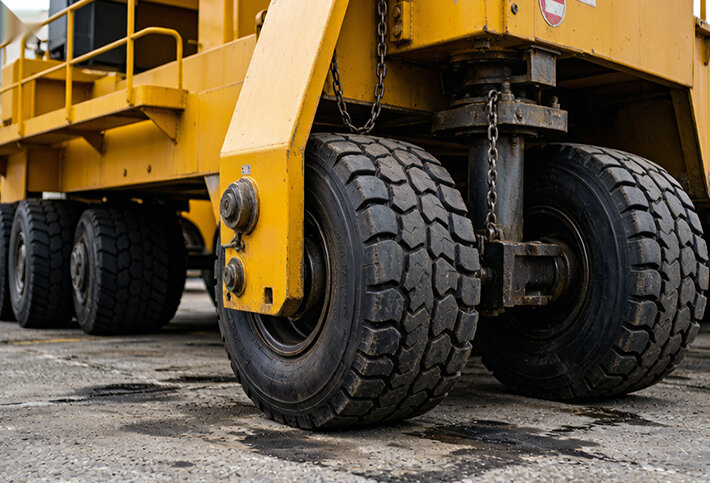

Rubber-tyred travel provides maximum yard mobility without rail installation.
Dual power supply — diesel generator or mains electric — for operational flexibility.
Variable-frequency drives for smooth operation and precise positioning.
Anti-sway system dramatically reduces load swing for faster, safer cycles.
Automatic telescopic spreader handles 20 ft and 40 ft containers seamlessly.
Optional GPS positioning and yard management system for intelligent operations.
| RUBBER-TYRED CONTAINER GANTRY CRANE | |||
| Rated load (Under Spreader) | t | 35 | |
| Span | m | 17250 | |
| Lifting Height | 15200 | ||
| Duty | A7 | ||
| Speed | Rated Load | m/min | 20 |
| Spreader only | 50 | ||
| Trolley Traveling | 70 | ||
| Crane Traveling | 120 | ||
| Stack height | mm | 120 | |
| Container specification | 20' , 40" | ||
| main dimension | C1 | 1035 | |
| C2 | 1035 | ||
| H | 22420 | ||
| H1 | 15200 | ||
| B | 12000 | ||
| W | 7000 | ||
| K | 6400 | ||
| Max.Wheel Loading | KN | 290 | |
| Total Power | kw | 310 | |
| Power Supply | DIESEL ENGINE-GENERATOR SET | ||
