QB Series Explosion-Proof Overhead Crane

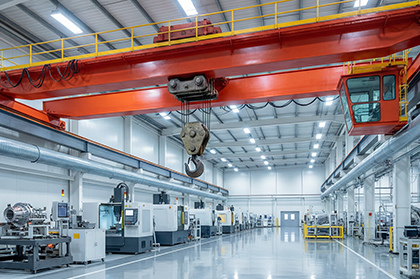

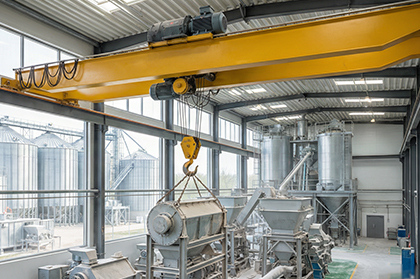

The QB series explosion-proof overhead crane is designed for material handling in hazardous areas containing flammable gases, vapours, or dusts. It is widely deployed in chemical plants, petrochemical facilities, coal mines, and pharmaceutical production sites. Rated capacity 5t. Span range 10.5~13.5m. All electrical components are explosion-proof rated to comply with national explosion-protection standards.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

QB Series Explosion-Proof Overhead Crane

01 Product Description

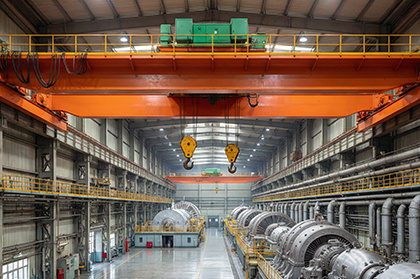

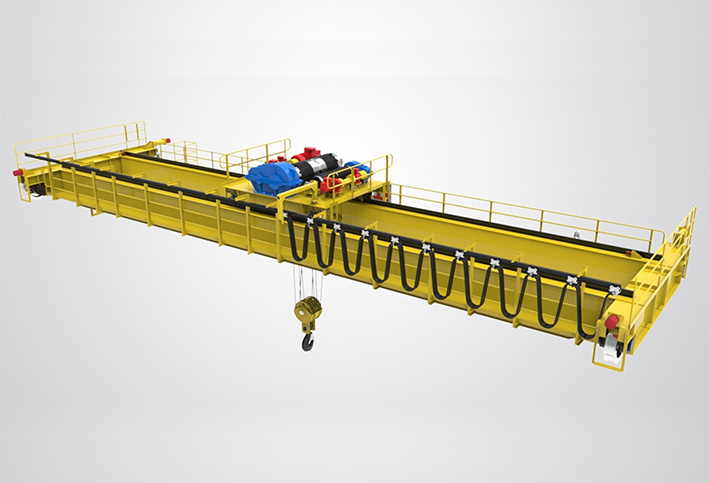

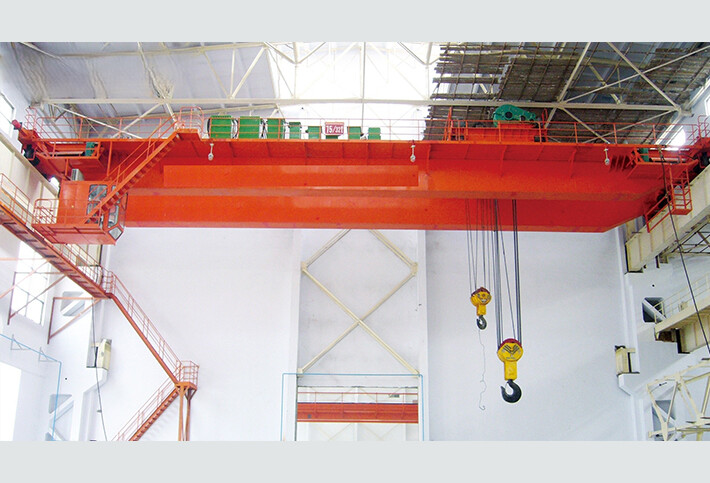

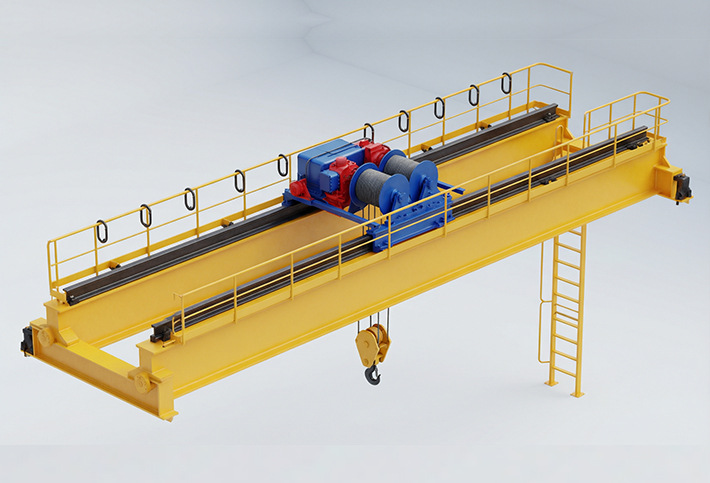

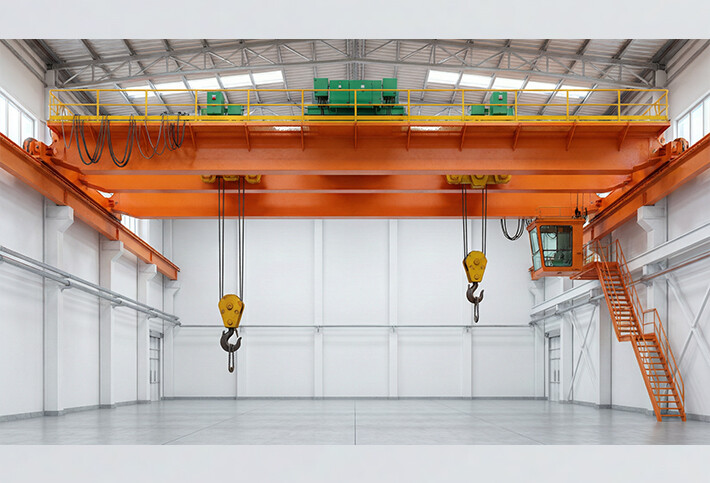

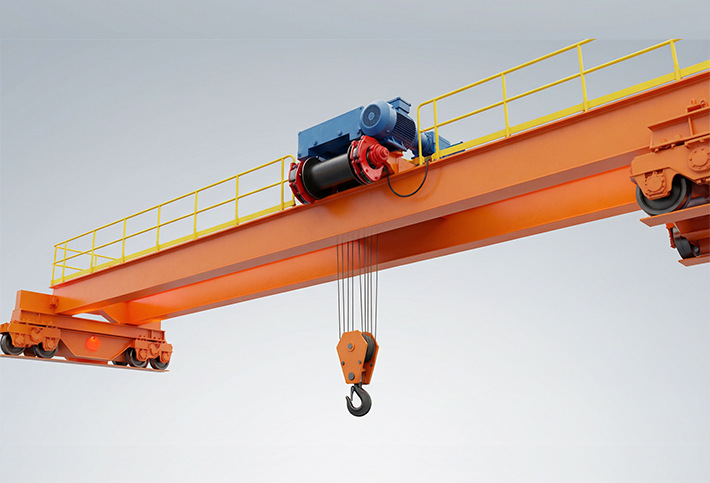

Built on the foundation of a standard overhead crane, the QB series features explosion-proof treatment of the entire electrical system and all friction-generating parts. The hoisting motor, cross-travel motor, electrical control panel, and travel limit switches are all explosion-proof certified. The crane offers reliable explosion-proof performance, rational structural layout, and convenient operation. Explosion-proof ratings meet ExdIIBT4, ExdIICT4, and related classifications.

02 Product Advantage

Fully explosion-proof electrical system suitable for hazardous locations.
Explosion-proof motors and enclosures eliminate all ignition sources.
Rational structural design with smooth, reliable operation.
Easy maintenance with widely available spare parts.
Compliant with GB explosion-proof standards and international codes.
Explosion-protection scheme can be tailored to the specific zone classification.

03 Product Parameter

Lifting capacity		t	5								10
Span		m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting Height			16								16
Duty			A4								A4
Explosion-proof grade			ExdⅡBT4 (ExdⅡCT4)								ExdⅡBT4 (ExdⅡCT4)
Speed	Hoisting	m/min	5								5
	Crab travelling		19.6(14.6)								20.5(14.6)
	Crane travelling		22.3(12)								22.3(12)
limit dimension	S1	mm	800								1050
	S2		1250								1300
main dimension	H	mm	1763								1800
	H1		765								765
	H2		-24	126	226	376	526	676	826	976	-24	126	226	376	526	678	828	978
	H3		2396	2546	2646	2796	2946	3096	3246	3386	2396	2546	2646	2796	2946	3096	3248	3398
	H4		71								602				552
	K		1400								2000
	W		3400			3550		5000			4050					5000
	B		5054			5204		5048			5704			5882		5948
	b		230
Max.Wheel Loading		kN	72	78	84	92	97	109	117	124	101	108	117	122	126	135	144	152
Total Power		kw	10								15.5
Crane Rail Recommended			43kg/m
Power Supply			3-Phase A.C.50Hz 380V
