Portal Crane

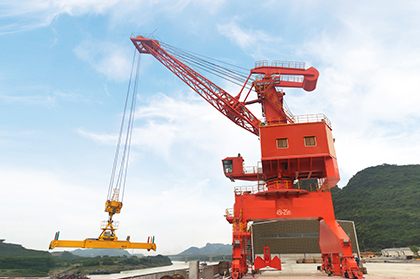

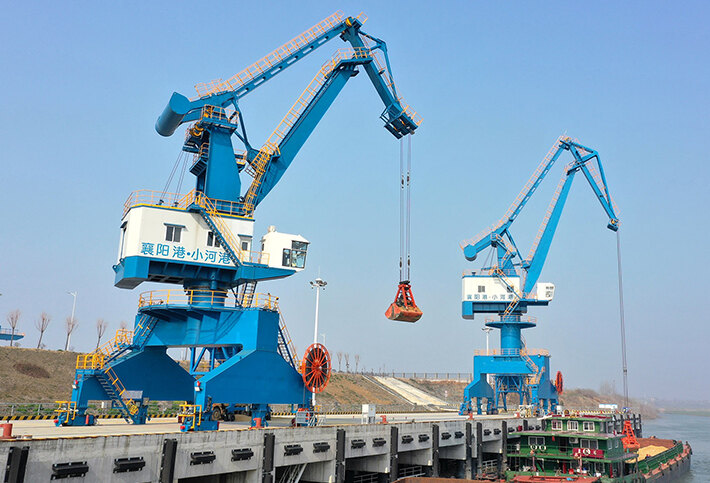

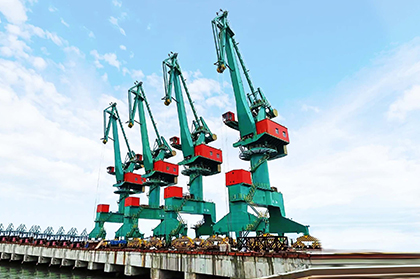

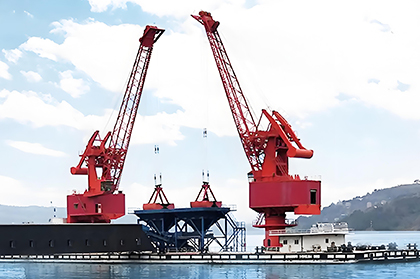

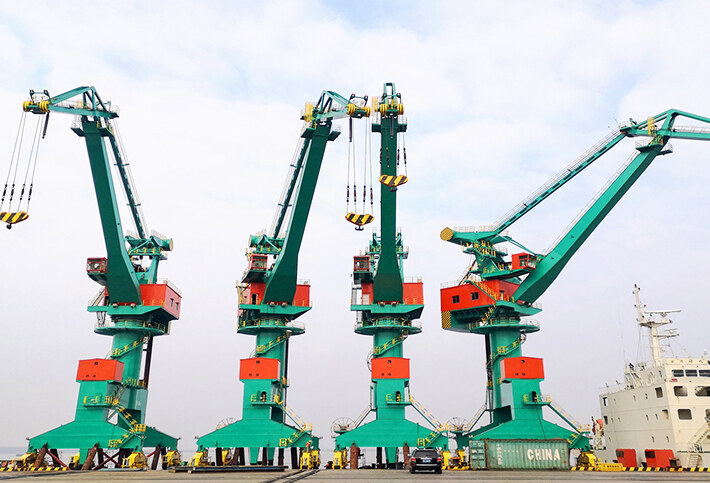

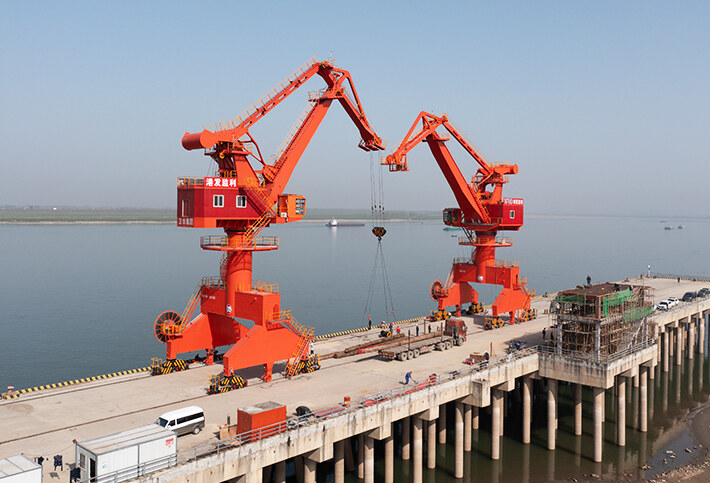

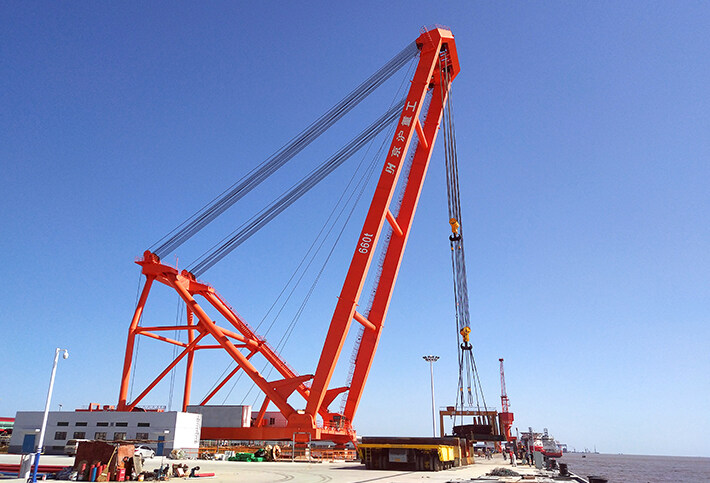

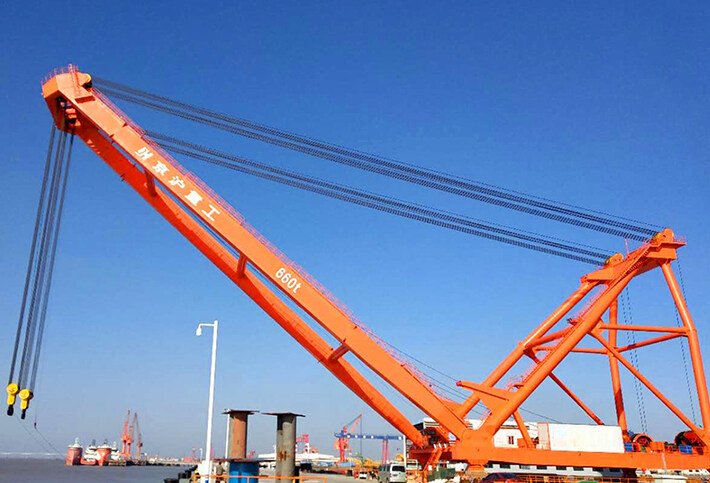

The portal crane is a versatile general-purpose crane widely deployed at ports, docks, and shipyards for handling bulk cargo and general break-bulk cargo, as well as heavy component lifts in shipbuilding. Rated capacity 10t. It offers a wide capacity range, flexible luffing, and full-circle slewing.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

The portal crane is characterised by its gantry-shaped base structure, beneath which trucks or trains can pass. It comprises the hoisting mechanism, luffing mechanism, slewing mechanism, travel mechanism, and steel structure. The hoist and luff motions can be operated in tandem for an efficient duty cycle. Full 360° slewing covers the entire quayside working area. Luffing is driven by rack-and-pinion or screw drive for accurate positioning. All motions employ variable-frequency drives for smooth, energy-efficient operation.

02 Product Advantage

360° continuous slewing covers the entire quayside working envelope.
Simultaneous hoist + luff operation enables a fast, efficient duty cycle.
Variable-frequency drives for smooth operation and energy savings.
Portal base allows vehicles to pass underneath, maximising quay utilisation.
Wide capacity range adapts to diverse cargo types and weights.
Mature, proven design with straightforward maintenance.

03 Product Parameter

Main Technical Parameters
Basic Parameters	Rated Lifting Capacity	Hook	10	16	25	40	60	80	t
	Rated Lifting Capacity	Grab	10	16	25	40	40	40	t
	Lifting Height	Above the Rail Surface	20	25	25	28	30	35	m
	Lifting Height	Below the Rail Surface	10	10	15	15	18	20	m
	Max. Working Range		30	35	35	35	40	45	m
	Min. Working Range		8.5	8.5	9.5	11	12	12	m
	Slewing Radius of Tail		6.5	7	7.5	8	9	9.5	m
	Rail Gauge		10.5/12	10.5/12	10.5/12/14	10.5/12/14/16	12/14/16	12/14/16	m
	Base Distance		10.5/12	10.5/12	10.5/12/14	10.5/12/14	12/14/16	12/14/16	m
Speed	Lifting Speed	Full Load	40	40	50	50	40	30	m/min
	Lifting Speed	No Load	60	60	80	80	70	50	m/min
	Luffing Speed		40	40	50	50	30	30	m/min
	Slewing Speed		1/1.2/1.5	1/1.2/1.5	1/1.2/1.5	1/1.2/1.5	0.8/1	0.8/1	r/min
	Crane Traveling Speed		25/30	25/30	25/30	25/30	25/30	25/30	m/min
Other parameters	Number of Wheels		16/20	20/24	24/32	32	32/40	40	piece
	Max. Wheel Load		250	250	250	250	300	300	kN
	Rail Type		QU80	QU80	QU100	QU100	QU100	QU100
	Power Supply		3 phase AC 380V 50HZ
