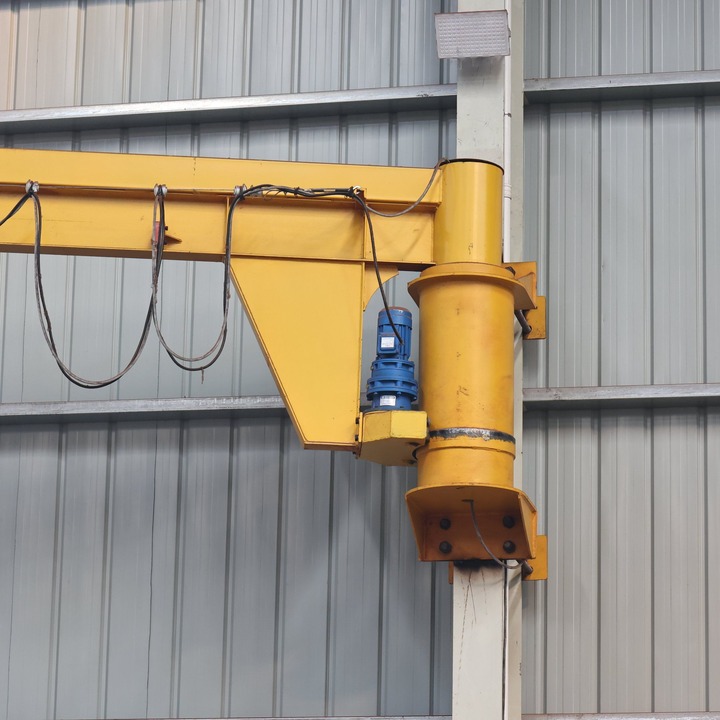

The BZZ-HZ light slewing jib crane is composed of a pillar, a variable-cross-section slewing jib, a drive unit and an electric hoist or winch. The variable-cross-section jib combines high strength with an optimised self weight, and the slewing motion is realised by a reduction gear working together with the slewing bearing. As a result the jib turns smoothly and can be positioned accurately, whether the slewing is driven electrically or pushed by hand, so the crane adapts easily to different duties and operator preferences.

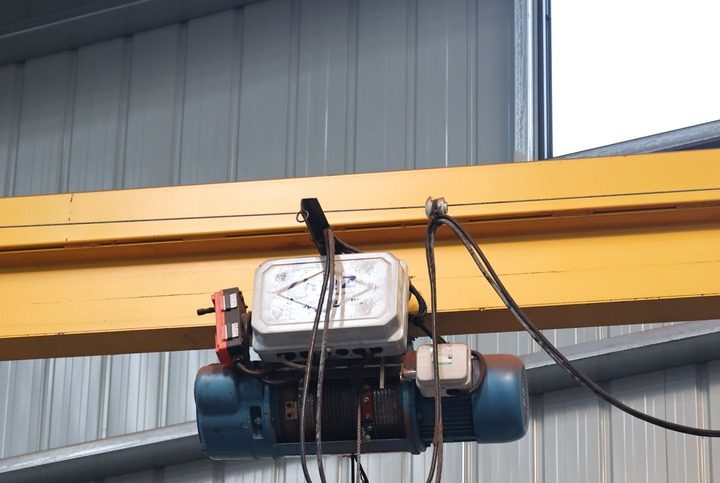

The electric hoist or winch travels back and forth along the rail of the jib and covers the full working radius, maximising the usable lifting envelope. With capacities from 125 kg up to 5,000 kg, working radii up to 12 m and both electric and manual slewing available, the BZZ-HZ light slewing jib crane suits general workshop lifting at machines, assembly and storage positions as well as tasks requiring both powered and hand slewing. The pillar is installed on a concrete foundation with anchor bolts, keeping the installation simple and reliable.

• Maximum lifting capacity 5,000 kg; maximum jib length 10 m

• Variable-cross-section slewing jib: high strength with optimised self weight

• Slewing by reduction gear and slewing bearing; electric-powered or manual operation

• Electric hoist or winch travels along the jib rail, maximising the travelling distance

• Easy operation, precise positioning and smooth running

• Broad load range from 125 kg to 5,000 kg, working radius up to 12 m

• Pillar installed on concrete foundation with anchor bolts
