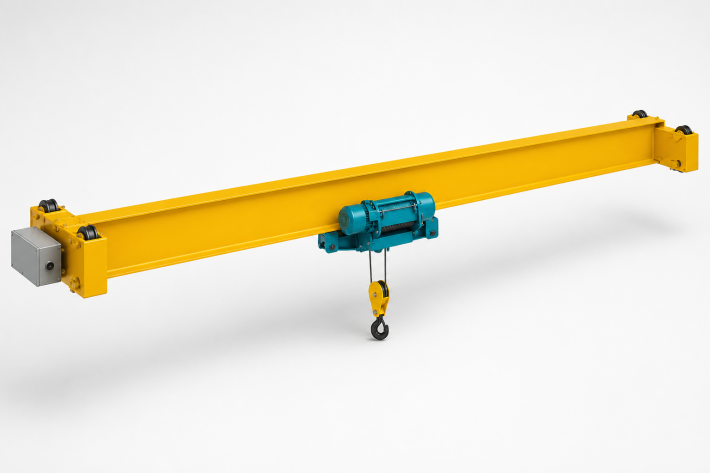

LDC Electric single girder crane

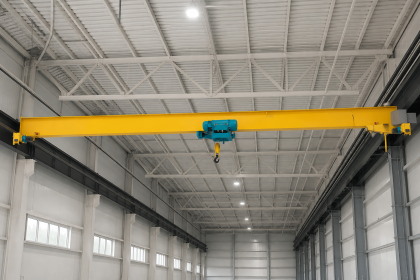

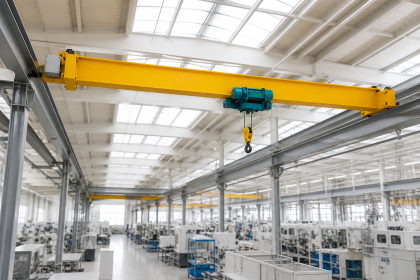

LDC is an improved European‑style electric single‑girder crane with a box‑section main girder and an offset trolley to increase lifting height. It is equipped with CD1/MD1 hoists, rated loads 1–20 t, spans 7.5–28.5 m, duty classes A3–A5, and operates at –25 ℃ to +40 ℃. It is widely used in factories, warehouses, and stockyards, but is not allowed in flammable, explosive, or corrosive environments.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

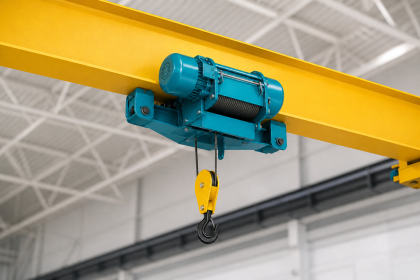

The LDC crane uses a welded box-section main girder for strength and rigidity. Its offset trolley places the hoist above the main girder, increasing effective lifting height and reducing building height requirements compared with the conventional LD design. It is compatible with CD1 and MD1 electric hoists. Rated capacity is 1 to 20 t, span is 7.5 to 28.5 m, duty classes are A3 to A5, and operating temperature is -25 C to +40 C. Control options include a ground pendant, wireless remote control and cabin operation. Do not use this crane in flammable, explosive or corrosive environments.

02 Product Advantage

Optimized lifting height.
Reduced building costs.
Strong and stable structure.
A wide range of specifications.
Flexible control options.
Adaptable to a range of operating conditions.
Proven compatibility.
Clearly defined applications.

03 Product Parameter

LDC Electric Single Girder Crane
Technical Data
Travelling mechanism (crane)	Travel speed (m/min)	20, 30
	Power (kW) x quantity	0.75x2, 0.8x2, 1.5x2
	Travel speed (m/min)	20, 30
Lifting mechanism and travelling mechanism (electric hoist)	Model	CDⅠ/MDⅠ	Lifting height	6-30
	Capacity (t)	1-20	Lifting speed (m/min)	8, 7
Duty class	A4
Power supply	AC 380V 50Hz
Wheel diameter	φ250
Rail width	37~70
