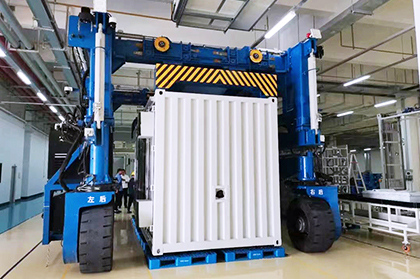

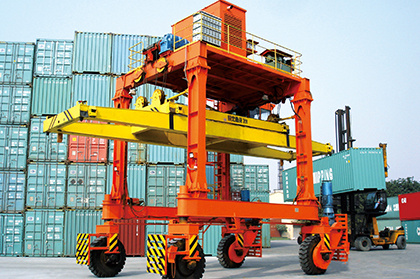

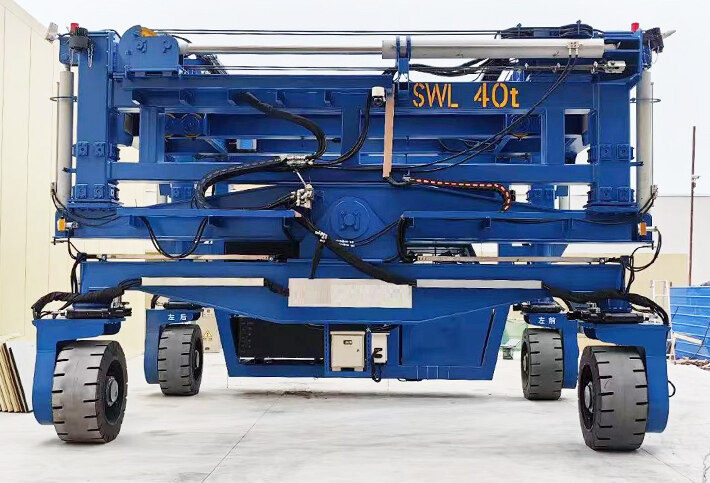

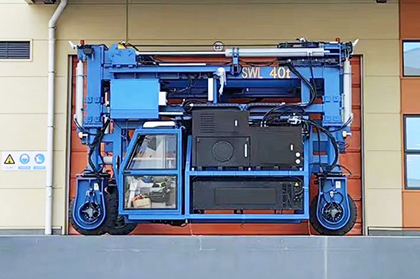

Container Straddle Carrier

The container straddle carrier is a versatile piece of container handling equipment used in terminals and yards. It can transport, stack, and load/unload containers, combining multiple functions in a single machine. Rated capacity: 35 or 41 t, depending on model. Lifting height: 9.5 or 12.2 m, depending on configuration.

Send Email Share With:

Facebook Twitter LinkedIn Pinterest Share

01 Product Description

The straddle carrier features a portal frame that straddles containers during travel. A hydraulic twist-lock spreader provides secure container pick-up. Power is supplied by a diesel engine with hydraulic or electric transmission, and the steering is highly manoeuvrable. The machine moves freely within the container yard without rails, allowing rapid short-distance container transport and stacking. Operation is simple and intuitive, enabling quick operator training.

02 Product Advantage

Multi-functional — transports, stacks, and loads/unloads containers in a single machine.
Highly manoeuvrable with tight turning radius, no rails required.
Hydraulic spreader with twist-lock ensures secure container handling.
Flexible movement anywhere on paved yard surfaces.
Stacking height of 2–3 containers for efficient yard density.
High operating speed for short-to-medium distance container transport.

03 Product Parameter

main technical data
Rated lifting capacity	Rated Lifting Capacity	35	41	t
Base distance	Base Distance	6.5	7	m
Inner width / outer width	Inner Width/Outer Width	3.5/5.5	3.5/6	m
Lifting height	Lifting Height	9.5/12.2	9.5/12.2	m
Stacking layers	Stack Layers	2/3	2/3	layer
Container specifications	Container Specification	20', 40'	20', 40'
Speed	Hoisting(Full Load/Empty Load)	15/25	15/25	m/min
Speed	Gantry Traveling(Full Load/Empty Load)	15/20	15/20	km/m
Spreader	Rotation	±5°	±5°
Spreader	Translation	±200mm	±200mm
Wheel outer turning radius	Outer Turning Diameter of Wheel	9.5	10	m
Number of wheels	Wheel Numbers	4	8	piece
Drive form	Drive Mode	Electric Drive	Electric Drive
Braking type	Brake Mode	Electrohydraulic	Electrohydraulic
Installed power	Installed Power	~270kW	~300kW
Maximum wheel pressure	Maximum Wheel Load	220KN	180KN	kN
Power supply	Power Supply	Diesel Generator Set, Batteries

04 Get a Free Quote & Product Drawings

Get a Free Crane Quote & Product Drawings
Tell us what you need to lift and where the crane will be used. If available, include the required capacity, span or working radius, and lifting height. Our sourcing team compares suitable manufacturer options by specification, quality and price. Not sure about the specifications? Describe your application and we can help.

Only name, email and a brief project description are required. Product drawings are coordinated with the selected manufacturer after your project requirements have been reviewed. Final technical details are confirmed during the design stage.

By submitting this form, you agree that we may contact you about this project. We do not sell your contact information.

05 Related Products

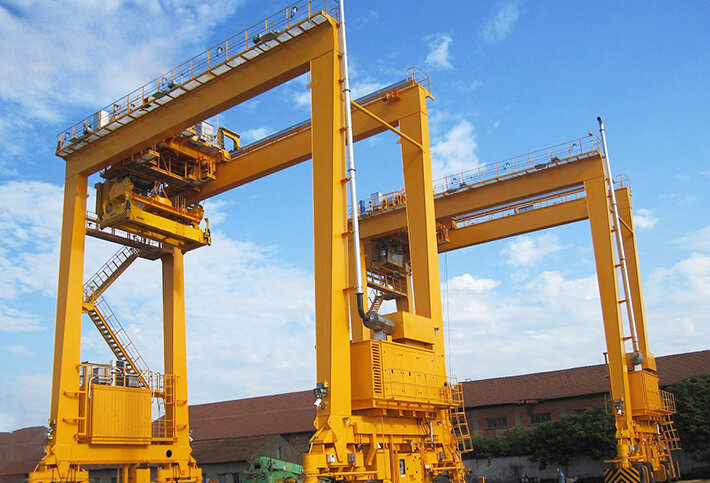

Rubber-Tyred Container Gantry Crane (RTG)

The rubber-tyred container gantry crane (RTG) is a key machine in container terminals, used for loading, unloading, stacking, and transferring containers within the container yard. Rated capacity (under spreader) 20t. Span 20m.

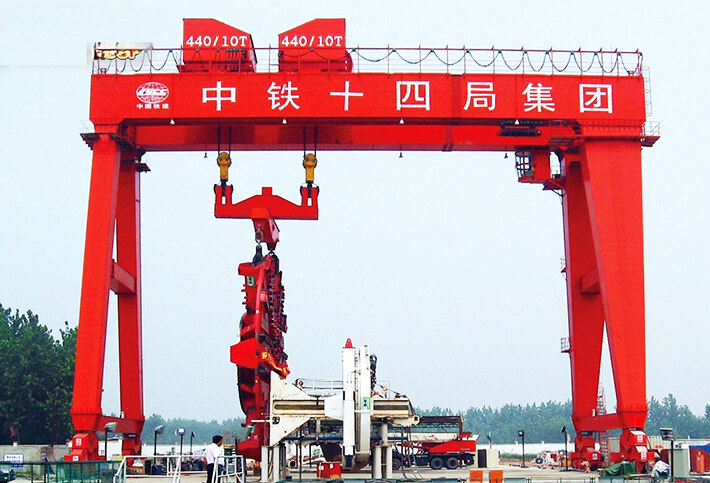

Gantry Crane for Shield Tunnelling
