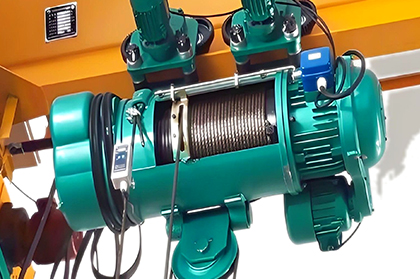

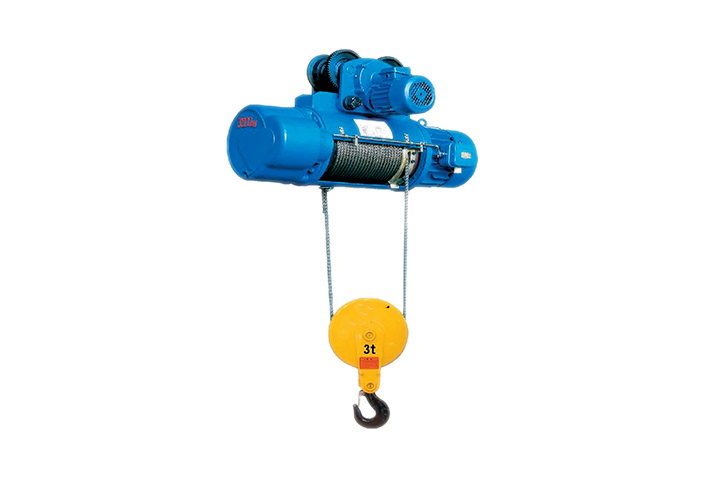

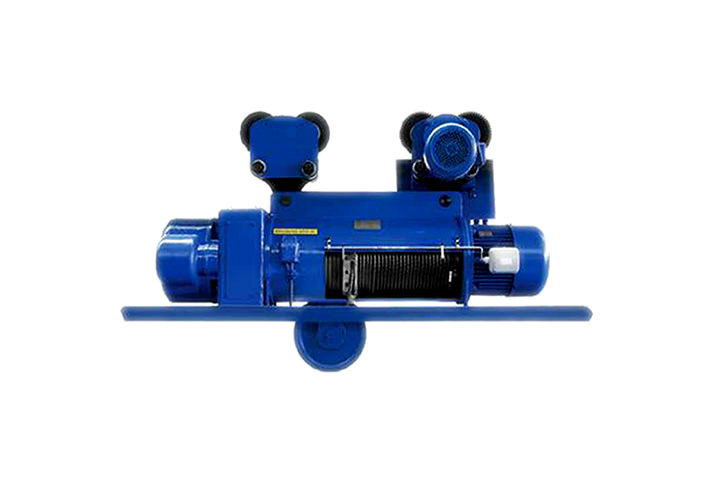

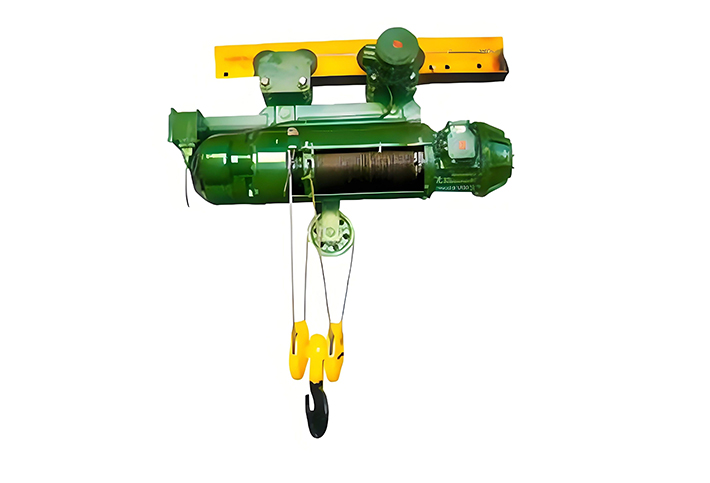

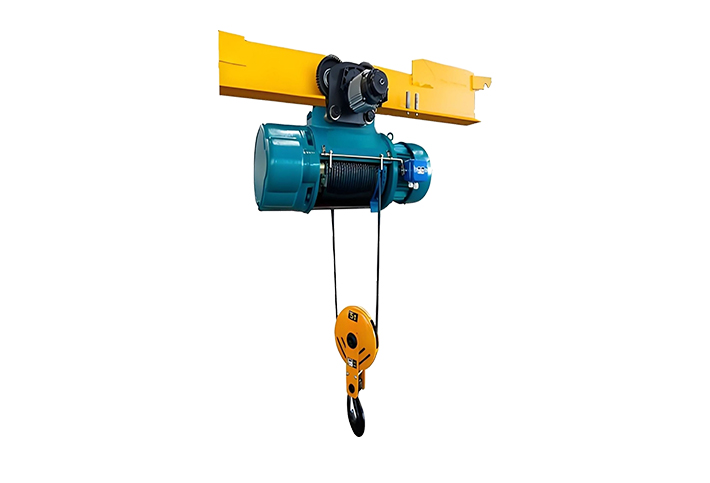

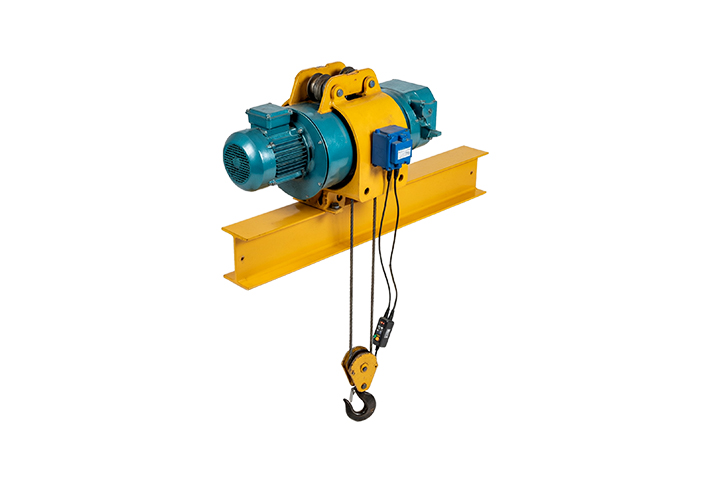

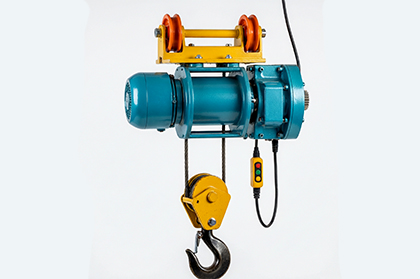

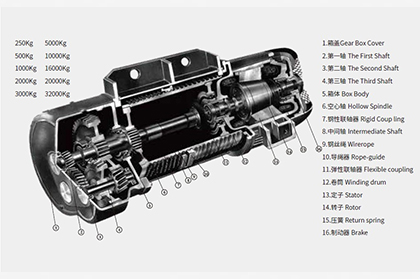

The CD and MD series wire rope electric hoist is a compact lifting device designed for mounting on single-girder, bridge, gantry, and jib cranes. With minor modifications, it can also serve as a winch. Manufactured in compliance with JB/T9008.1–JB/T9008.6. It offers a rated capacity range of 0.5~1t. Standard lifting heights reach up to 6~9~12m. The hoist is widely deployed in factories, mines, ports, warehouses, cargo yards, and workshops, playing an essential role in boosting operational efficiency and improving working conditions.
The CD model operates at a single hoisting speed suitable for routine lifting tasks. The MD model provides dual speeds — normal and creep — enabling precise load positioning for applications such as moulding box assembly, machine tool maintenance, and delicate loading/unloading operations. The hoist assembly comprises a lifting mechanism, cross-travel drive, electrical control system, and steel structure. The hoisting motor is a conical-rotor brake induction motor featuring automatic braking upon power loss for enhanced safety.
Compact design with low dead weight for easy installation and reduced structural load.
Dual-speed option (MD model) — creep speed for precise positioning, normal speed for efficient lifting.
Conical-rotor brake motor provides automatic fail-safe braking.
Smooth and quiet operation with extended service life.
Highly adaptable — compatible with single-girder, bridge, gantry, and jib cranes.
Heavier-duty variants (WH20, WH32T) available for higher-capacity requirements.
| Type | CD1, MD1 | |||||||||||||||||||||||||||||||||||||||
| Capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | |||||||||||||||||||||||||||||||||
| Hoisting height(m) | 6 | 9 | 12 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | 24 | 30 | |||
| Hoisting speed (m/min) |
8 | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | |||||||||||||||||||||||||||||||||
| Travel speed (m/min) |
20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | |||||||||||||||||||||||||||||||||
| Dia. of wire rope(mm) |
4.8 | 7.4 | 11 | 13 | 15 | 15 | 18 | |||||||||||||||||||||||||||||||||
| Specification | 6x37+FC | |||||||||||||||||||||||||||||||||||||||
| Track | 16-28b | 20a-28b | 20a-28b | 20a-28b | 25a-5a | 32b-45a | 32b-63c | |||||||||||||||||||||||||||||||||
| Min.curvature radius(m) |
1.5 | 1.5 | 2 | 3 | 3 | 4 | 2 | 2 | 2.5 | 2.5 | 3 | 4 | 2 | 2 | 2.5 | 2.5 | 3 | 4 | 2.5 | 2.5 | 3 | 4 | 4.5 | 6 | 3.5 | 4 | 6 | 7.5 | 9 | 3.5 | 4 | 6 | 8 | 11 | ||||||
| Hoisting motor |
Power(kW) | 0.8(0.4/0.8) | 1.5(0.4/1.5) | 3.0(0.4/3.0) | 4.5(0.4/4.5) | 7.5(0.8/7.5) | 13(2.2/13) | 13(2.2/13) | ||||||||||||||||||||||||||||||||
| Rotation speed(r/min) | 1380 | 1400 | ||||||||||||||||||||||||||||||||||||||
| Current（A） | 2.4(0.72/2.4) | 4.3(0.72/4.3) | 7.6(1.25/7.6) | 11(1.25/11) | 18(2.4/18) | 30(5.2/30) | 30(5.2/30) | |||||||||||||||||||||||||||||||||
| Travel motor |
Power(kW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8×2 | ZDY.22-4 | ||||||||||||||||||||||||||||||||
| Rotation speed(r/min) | 1380 | |||||||||||||||||||||||||||||||||||||||
| Current（A） | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4×2 | 2.4×2 | |||||||||||||||||||||||||||||||||
| No.of Connecting(×c) | 120 | |||||||||||||||||||||||||||||||||||||||
| Working system | intermediate FC=25% | |||||||||||||||||||||||||||||||||||||||
| Power source | Three-phase AC 380V 50Hz | |||||||||||||||||||||||||||||||||||||||
